280381-1
Manufacturer:
TE Connectivity
Mfr.Part #:
280381-1
Datasheet:
Description:

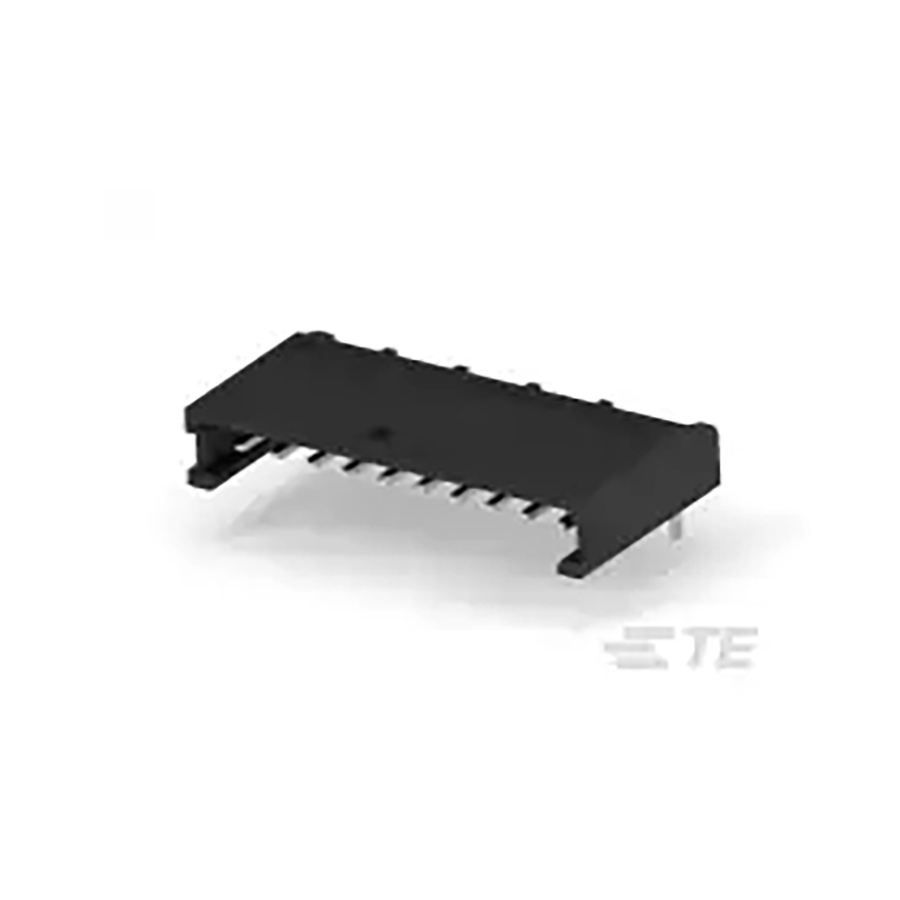

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 28 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Depth | 14.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.5052 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Housing Color | Black |
| Contact Mating Length | 6.604 mm |
| Keyed | No |
| Plating Thickness | 3.5 µm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 6.6 mm |
| Contact Shape | Round |
| Shrouded End Dimension | 1.65 mm |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Termination Post Length | 3.5 mm |
Stock: 865
Distributors
pcbx
pcbxUnit Price$0.98885
Ext.Price$0.98885
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98885 | $0.98885 |
| 10 | $0.84032 | $8.40320 |
| 25 | $0.79597 | $19.89925 |
| 50 | $0.75396 | $37.69800 |
| 100 | $0.71417 | $71.41700 |
| 300 | $0.67471 | $202.41300 |
| 500 | $0.63743 | $318.71500 |
| 1000 | $0.60701 | $607.01000 |
| 3000 | $0.57352 | $1720.56000 |
| 5000 | $0.54188 | $2709.40000 |
| 10000 | $0.51605 | $5160.50000 |
